ORM

The Object Relational Model (ORM) defines the mapping between python objects and the SQL database

The objects themselves act as abstractions over whatever underlying filesystem is being used. For example, a Space roughly corresponds to an independent fileset in PixStor.

Warning

In general, you should not use these objects directly - use the REST interface instead.

The REST interface will be (mostly) stable across release versions with only compatible changes being made, whereas the backend code may undergo breaking changes between releases.

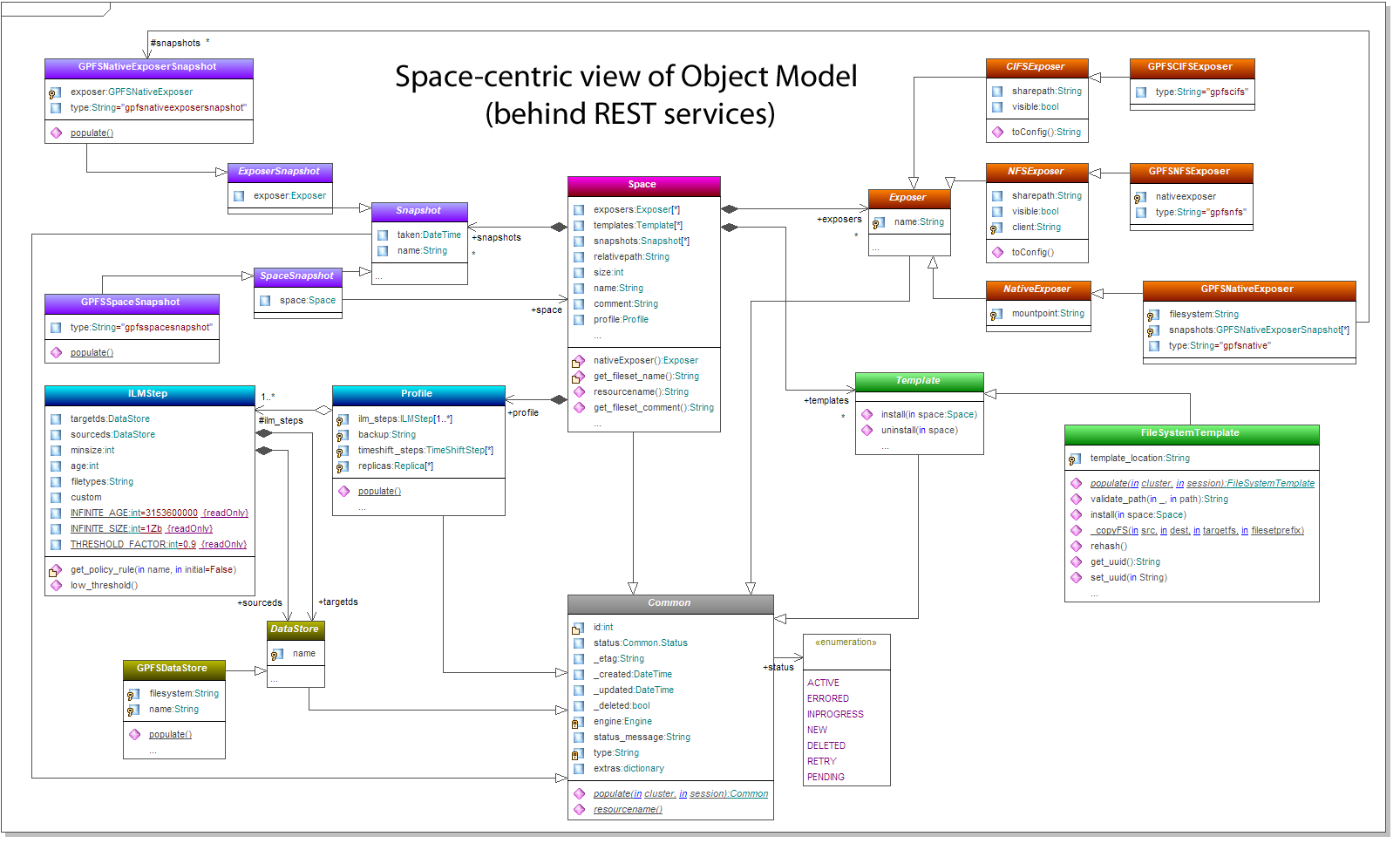

ORM Diagram

Comparison to CLI PixStor

To help existing PixStor administrators, we can roughly match the APMgmt objects and concepts in PixStor as follows:

Datastore: storage pool

Exposer: filesystem, samba or nfs share

ILM Step: file placement policy rule

Profiles: file placement policy

Space: independent and dependent filesets

Snapshot: snapshot

Template: directory structure, which can include dependent filesets

Provider: remote storage location

Replica: sync with a remote location (provider)

Attention

However, the APMgmt objects represent abstract concepts. How they are implemented at the filesystem layer does not match completely with PixStor, and is subject to change.

API Documentation

Datastores

class arcapix.management.orm.datastores.DataStore(*args, **kwargs)

A data store represents a piece of persistent storage which can contain 1 (or usually many more) bytes of data, and from which individual Spaces can be carved.

comment: user comment on the item

extras: additional metadata and settings

id: unique identifier for the item

name: datastore name

status: current status of the item

status_message: current status as a string

type: type of the datastore

class arcapix.management.orm.datastores.GPFSDataStore(*args, **kwargs)

A datastore belonging to a GPFS filesystem.

comment: user comment on the item

extras: additional metadata and settings

filesystem: name of the filesystem the datastore belongs to

id: unique identifier for the item

name: datastore name

status: current status of the item

status_message: current status as a string

type: type of the datastore

Exposers

class arcapix.management.orm.exposers.CIFSExposer(name, sharepath, visible=True, readonly=False, comment=None, extras=None, *args, **kwargs)

Generic CIFS (Samba) exposer for a space.

Supported extras:

extras can contain any valid smb.conf settings. Any provided values will be written to smb.conf ‘as is’.

comment: user comment on the item

extras: additional metadata and settings

id: unique identifier for the item

name: name of the exposer

pixmanaged: indicates whether the share is managed by pixstor

readonly: specifies whether the share is read-only

sharepath: path where the exposer is located

status: current status of the item

status_message: current status as a string

type: type of the exposer

visible: specifies whether the share is visible

class arcapix.management.orm.exposers.GPFSCIFSExposer(name, sharepath, visible=True, readonly=False, comment=None, extras=None, *args, **kwargs)

An exposer to expose a GPFS based space via CIFS.

This requires that the space is already exposed via the Native exposer

(i.e. that the underlying fileset is linked)

comment: user comment on the item

extras: additional metadata and settings

id: unique identifier for the item

name: name of the exposer

pixmanaged: indicates whether the share is managed by pixstor

readonly: specifies whether the share is read-only

sharepath: path where the exposer is located

status: current status of the item

status_message: current status as a string

type: type of the exposer

visible: specifies whether the share is visible

class arcapix.management.orm.exposers.GPFSNFSExposer(name, sharepath, *args, **kwargs)

An exposer to expose a GPFS based space via NFS.

This requires that the space is already exposed via the Native exposer (i.e. that the underlying fileset is linked)

client: client associates with the share

comment: user comment on the item

extras: additional metadata and settings

id: unique identifier for the item

name: name of the exposer

pixmanaged: indicates whether the share is managed by pixstor

readonly: specifies whether the share is read-only

sharepath: path where the exposer is located

status: current status of the item

status_message: current status as a string

type: type of the exposer

visible: specifies whether the share is visible

class arcapix.management.orm.exposers.GPFSNativeExposer(*args, **kwargs)

The native exposer presents the way a space is exposed on the filesystem.

Whenever a space is linked into the filesystem (e.g. a GPFS Fileset being linked), then a native exposer is required.

Typically when a GPFS filesystem is to be exposed via NFS or CIFS, it will also require a native exposer as well.

comment: user comment on the item

extras: additional metadata and settings

filesystem: filesystem the exposer represents

id: unique identifier for the item

mountpoint: mountpoint for the exposer

name: name of the exposer

snapshots: collection of snapshots of the exposer

status: current status of the item

status_message: current status as a string

type: type of the exposer

class arcapix.management.orm.exposers.NFSExposer(name, sharepath, *args, **kwargs)

Generic NFS Exposer for a space.

NB. For GPFS, you would normally use a GPFSNFSExposer.

Supported extras:

extras can contain any valid /etc/exports settings. Any provided values will be written to /etc/exports ‘as is’.

Boolean options can be provided in positive or negative form - e.g.

async=True <=> sync=False
root_squash=False <=> no_root_squash=True

client: client associates with the share

comment: user comment on the item

extras: additional metadata and settings

id: unique identifier for the item

name: name of the exposer

pixmanaged: indicates whether the share is managed by pixstor

readonly: specifies whether the share is read-only

sharepath: path where the exposer is located

status: current status of the item

status_message: current status as a string

type: type of the exposer

visible: specifies whether the share is visible

class arcapix.management.orm.exposers.NativeExposer(*args, **kwargs)

Generic native _Exposer for a space.

NB. For GPFS, you would normally use a GPFSNativeExposer

comment: user comment on the item

extras: additional metadata and settings

id: unique identifier for the item

mountpoint: mountpoint for the exposer

name: name of the exposer

status: current status of the item

status_message: current status as a string

type: type of the exposer

ILM Steps

In general, the Information Life-Cycle (ILM) ORM isn’t used directly, but via the Profile that the particular Step belongs to.

class arcapix.management.orm.lifecycle.ILMStep(*args, **kwargs)

Represents a step in the lifecycle process.

age: Length of time before files should be moved in seconds.

comment: user comment on the item

extras: additional metadata and settings

filetypes: types of file the ILM step applies to

id: unique identifier for the item

property low_threshold: Calculates the lower bound when using age/size thresholds

minsize: minimum size for files the ILM step applies to

profile_id: profile the ilmstep belongs to

status: current status of the item

status_message: current status as a string

targetds: target datastore for file placement

threshold: High water mark before migration should be considered

Profiles

class arcapix.management.orm.profiles.Profile(*args, **kwargs)

A profile defines the location, ILM, and other characteristics of a space.

comment: user comment on the item

extras: additional metadata and settings

id: unique identifier for the item

ilm_steps: ILM steps associated with the profile

name: name of the profile typical format ‘{filesystem}-{pool}’

status: current status of the item

status_message: current status as a string

Providers

class arcapix.management.orm.providers.BoxProvider(*args, **kwargs)

A provider for replicating data to a Box.com account.

authentication: authentication url or code

comment: user comment on the item

extras: additional metadata and settings

id: unique identifier for the item

name: provider name

remote_path: basepath within the authenticated box account

status: current status of the item

status_message: current status as a string

type: type of the provider

username: name of the authenticated user

class arcapix.management.orm.providers.Provider(*args, **kwargs)

A Provider represents a remote storage platform.

This might be, for example, a cloud storage service. Providers can be used as replica targets for spaces.

comment: user comment on the item

extras: additional metadata and settings

id: unique identifier for the item

name: provider name

status: current status of the item

status_message: current status as a string

type: type of the provider

Replicas

class arcapix.management.orm.replicas.BoxSyncReplica(*args, **kwargs)

A Replica which uses BoxSync to replicate data.

comment: user comment on the item

direction: replication direction

extras: additional metadata and settings

id: unique identifier for the item

provider: provider associated with this replica

relativepath: path within the provider to replicate

status: current status of the item

status_message: current status as a string

type: specific type of the replica

class arcapix.management.orm.replicas.Direction

Enum specifying replication directions.

BOTH = 'both': two-way sync between PixStor and provider

DOWN = 'down': downstream, provider to PixStor only

UP = 'up': upstream, PixStor to provider only

class arcapix.management.orm.replicas.Replica(*args, **kwargs)

A Replica represents a remote copy of a space.

comment: user comment on the item

direction: replication direction

extras: additional metadata and settings

id: unique identifier for the item

provider: provider associated with this replica

provider_id: id of the provider associated with this replica

relativepath: path within the provider to replicate

status: current status of the item

status_message: current status as a string

type: specific type of the replica

Spaces

Hint

If a fileset is created via the Nexus UI, it will only be a Space if it’s a ‘templated’ fileset. ‘Basic’ filesets created in the Nexus UI are not Spaces at present.

class arcapix.management.orm.spaces.Space(*args, **kwargs)

A space is the fundemental unit of the system.

in essence it represents an instance of some space made available matching a given profile, and exposed via one or more points, and based on a given template.

Supported extras:

gpfs.fileset.name (str):
The name of the fileset corresponding to the space.

Note - this is a readonly attribute. The fileset name is determined by the Space name and profile.
gpfs.fileset.dependent (bool):
Indicates whether the corresponding fileset is dependent or independent.

When provided with a POST request, it indicates the type of fileset to create.
gpfs.fileset.inodespace (int):
The inodes space to which the corresponding fileset belongs.

If dependent is True, a value can be provided to POST. If not provided, the inodespace will be inferred from exposers and relativepath.

If dependent is False, any value provided to POST will be ingored. Independent filesets always belong to inodespace = 0
gpfs.fileset.maxinodes (int):
The maximum inodes allocation of the corresponding fileset.

If dependent is False, a value can be provided to POST. If not provided, a default value will be used.

If dependent is True any provided value will be ignored
gpfs.fileset.allocinodes (int):
The number of inodes allocated to the corresponding fileset.

If dependent is False, a value can be provided to pre-allocate inodes. If not provided, a default value will be used.

If dependent is True any provided value will be ignored

allocinodes must be less than maxinodes

Note

Once a Space is created, changes to these extras will have no effect on the corresponding fileset

comment: user comment on the item

exposers: exposers associated with the space

extras: additional metadata and settings

id: unique identifier for the item

name: name of the space

profile: profile associated with the space

relativepath: path of the space, relative to any exposers

replicas: replicas associated with the space

size: size of the space

snapshots: collection of snapshot of the space

status: current status of the item

status_message: current status as a string

templates: templates associated with the space

usage: current usage of the space in blocks

Snapshots

Hint

Snapshots only refer to “one-off” snapshots. Periodic snapshots will be covered (in a future release) by profiles.

class arcapix.management.orm.snapshots.ExposerSnapshot(*args, **kwargs)

A snapshot of an exposer.

Such as of a GPFS Filesystem

comment: user comment on the item

exposer_id: id of the exposer the snapshot is associated with

extras: additional metadata and settings

id: unique identifier for the item

name: name of the snapshot

status: current status of the item

status_message: current status as a string

taken: datetime at which the snapshot was created

type: type of the snapshot

class arcapix.management.orm.snapshots.GPFSNativeExposerSnapshot(*args, **kwargs)

A snapshot of a GPFSNativeExposer.

comment: user comment on the item

extras: additional metadata and settings

filesystem: name of the filesystem associated with the snapshot

id: unique identifier for the item

name: name of the snapshot

status: current status of the item

status_message: current status as a string

taken: datetime at which the snapshot was created

type: type of the snapshot

class arcapix.management.orm.snapshots.GPFSSpaceSnapshot(*args, **kwargs)

Snapshot of a GPFS space.

comment: user comment on the item

extras: additional metadata and settings

filesystem: name of the filesystem associated with the snapshot

id: unique identifier for the item

name: name of the snapshot

status: current status of the item

status_message: current status as a string

taken: datetime at which the snapshot was created

type: type of the snapshot

class arcapix.management.orm.snapshots.Snapshot(*args, **kwargs)

Represents an abstract Snapshot

comment: user comment on the item

extras: additional metadata and settings

id: unique identifier for the item

name: name of the snapshot

status: current status of the item

status_message: current status as a string

taken: datetime at which the snapshot was created

type: type of the snapshot

class arcapix.management.orm.snapshots.SpaceSnapshot(*args, **kwargs)

A snapshot of a space.

comment: user comment on the item

extras: additional metadata and settings

id: unique identifier for the item

name: name of the snapshot

space_id: id of the space associated with the snapshot

status: current status of the item

status_message: current status as a string

taken: datetime at which the snapshot was created

type: type of the snapshot

Templates

class arcapix.management.orm.templates.FilesystemTemplate(*args, **kwargs)

Template based on a directory structure.

Can include GPFS dependent filesets.

comment: user comment on the item

extras: additional metadata and settings

id: unique identifier for the item

name: name of the template

status: current status of the item

status_message: current status as a string

template_location: path to the template directory

template_version: hash used for versioning the template

type: type of the template

class arcapix.management.orm.templates.Template(*args, **kwargs)

Represents an abstract Template.

comment: user comment on the item

extras: additional metadata and settings

id: unique identifier for the item

name: name of the template

status: current status of the item

status_message: current status as a string

type: type of the template
